應用領域

Beverage package detection, instrument panel text detection, size measurement, alignment system, brightness detection and item identification

電子設備精密對位檢測、汽車零件組裝檢測、制藥機械組裝及包裝檢測、工件排列方向檢測、食品飲料填充檢測、產品瑕疵檢測、機械手定位抓取檢測、工件尺寸測量等

Beverage package detection, instrument panel text detection, size measurement, alignment system, brightness detection and item identification

電子設備精密對位檢測、汽車零件組裝檢測、制藥機械組裝及包裝檢測、工件排列方向檢測、食品飲料填充檢測、產品瑕疵檢測、機械手定位抓取檢測、工件尺寸測量等

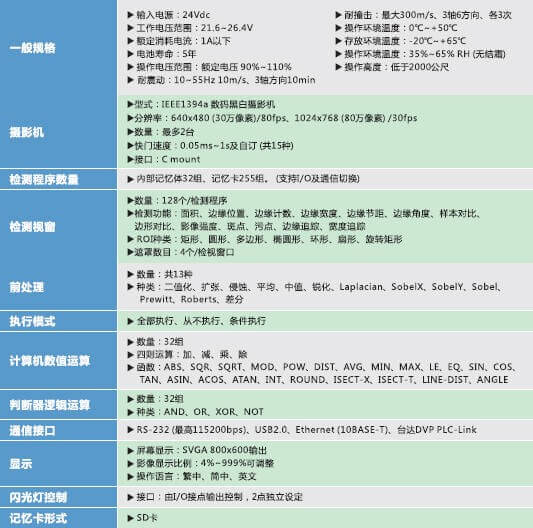

技術規格

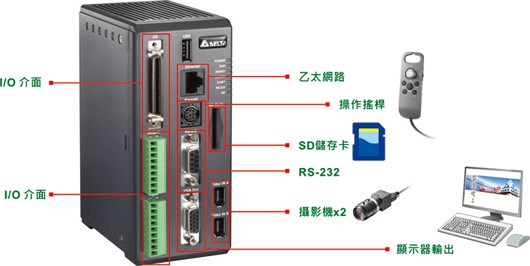

系統接口

Interface: Provides a 9-pin input terminal, a 9-pin output terminal and a 50-pin I/O mixed terminal.

Ethernet: Connects a PC or PLC via Ethernet for data/images transmission and set up.

Keypad: Sets up and controls compatibility with DMV system

SD memory card: Stores DMV set up process, parameters, inspection results and images taken.

RS-232: Speedily connects to Delta controllers or controllers of other brands without the need for other programming languages.

Camera: Expandable to two 1394a cameras.

Display output: Standard SVGA display output

Interface: Provides a 9-pin input terminal, a 9-pin output terminal and a 50-pin I/O mixed terminal.

Ethernet: Connects a PC or PLC via Ethernet for data/images transmission and set up.

Keypad: Sets up and controls compatibility with DMV system

SD memory card: Stores DMV set up process, parameters, inspection results and images taken.

RS-232: Speedily connects to Delta controllers or controllers of other brands without the need for other programming languages.

Camera: Expandable to two 1394a cameras.

Display output: Standard SVGA display output

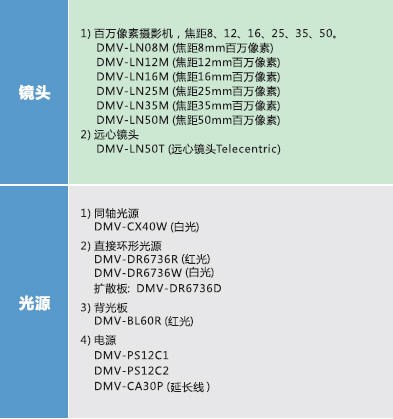

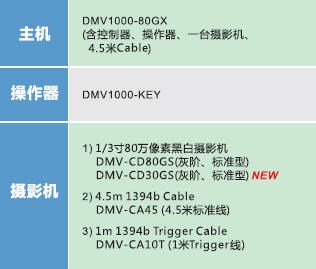

產品訂單一覽表

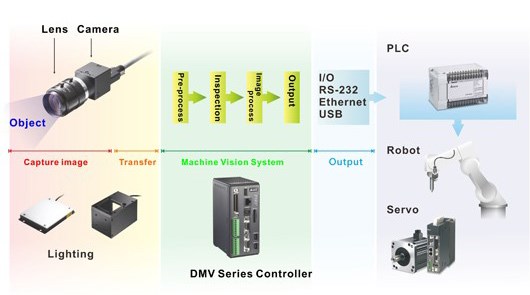

系統架構
